Description

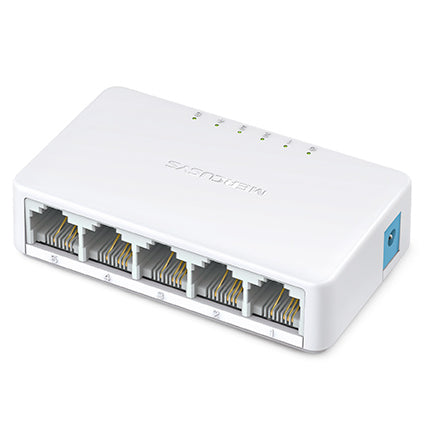

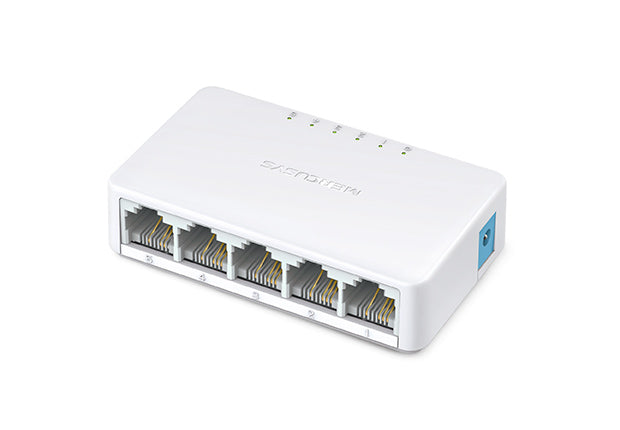

The Mercusys MS105 is an ultra-compact desktop switch designed to provide quick and reliable wired network expansion. About the same size as a credit card, this sleek device fits seamlessly into any home or small office environment without occupying valuable desk space. It features five 10/100Mbps auto-negotiation ports with integrated Auto MDI/MDIX support, eliminating the need for crossover cables. With its fanless design and plug-and-play functionality, you can instantly connect computers, printers, IP cameras, and smart TVs to your network with zero configuration required.
Key Features
-
Five 10/100Mbps Ports: Fast Ethernet ports with auto-negotiation support for seamless device integration.
-
Ultra-Compact Design: Credit card-sized footprint (82 x 49 mm) allows for flexible placement anywhere.
-
Plug and Play: No configuration or software installation required; simply connect your devices and start working.
-
Fanless Operation: Ensures silent performance, making it ideal for quiet work environments or home use.
-
Auto MDI/MDIX: Automatically detects the cable type, removing the need for specialized crossover cables.
-
Reliable Technology: Uses Store and Forward transfer method and MAC Address learning for stable data transmission.
Specifications
-
Manufacturer/Model: Mercusys MS105
-
Interfaces: 5 x 10/100Mbps RJ45 Ports
-
Switching Capacity: 1 Gbps
-
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
-
Data Rates: 10/100Mbps (Half Duplex) | 20/200Mbps (Full Duplex)
-
Buffer Capacity: 768 Kb
-
Power Supply: External Power Adapter (5.0VDC / 0.6A)
-
Dimensions: 82 x 49 x 21 mm
